GM 356 Slope Protection Geocell Road Construction Honeycomb Gravel Stabilizer HDPE Geocells

Name: GM 356 Slope Protection Geocell Road Construction Honeycomb Gravel Stabilizer HDPE Geocells
Brand: Geomax
Price: 1 USD

China GM 356 Slope Protection Geocell Road Construction Honeycomb Gravel Stabilizer HDPE Geocells wholesale

Brand Name : Geomax

Model Number : 1.5-150-356

Certification : CE

Place of Origin : ANHUI CHINA

MOQ : 1000 ㎡

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 2000㎡ per day

Delivery Time : 10-20 days

Packaging Details : Folded strips are wrapped by film and layed on pallets or as requested

Raw Material : HDPE Plastic

GeoMax Standard : ASTM

Cell Height : 150mm

Model : GM 356

Geocell Color : Black, green, brown, Black Yellow White Green, Green or as per request

Welding Space : 356mm

Cell Thickness : 1.5mm

Geocell Surface : Textured and Perforated

Contact Now

Road Construction Honeycomb Gravel Stabilizer HDPE Geocells For Slop Protection Geocell

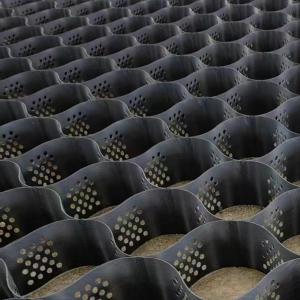

Hdpe Geocell is a revolutionary method of isolating and restricting soil, aggregates, or other filling materials. These three-dimensional honeycomb structures can expand during installation to form flexible walls with interconnected strips, enhancing tensile strength, while also keeping everything in place to prevent movement due to increased compression caused by environmental factors such as weathering.

When pressure is applied to the soil enclosed within a geogrid (such as in load support applications), lateral strain will occur on the surrounding grid walls. The 3D constrained region reduces the lateral flowability of soil particles, but the vertical load on the constrained filling will generate significant lateral stress and resistance at the cell soil interface.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

GM 356 Slope Protection Geocell Road Construction Honeycomb Gravel Stabilizer HDPE Geocells

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
